Hikvision DS-PK1-LRT-HWB

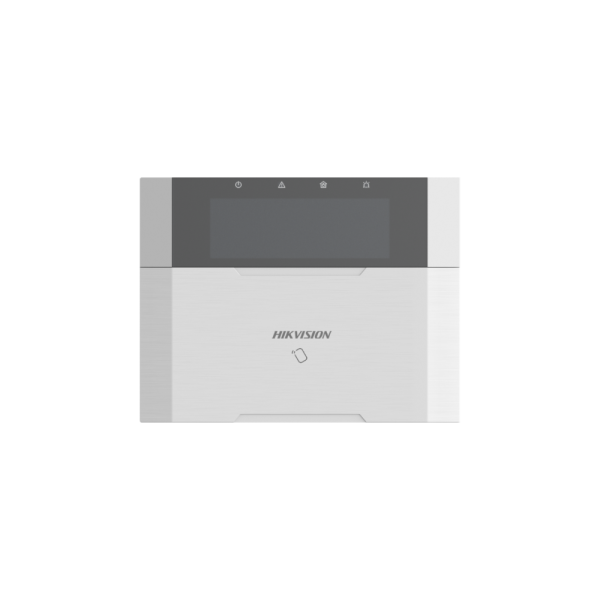

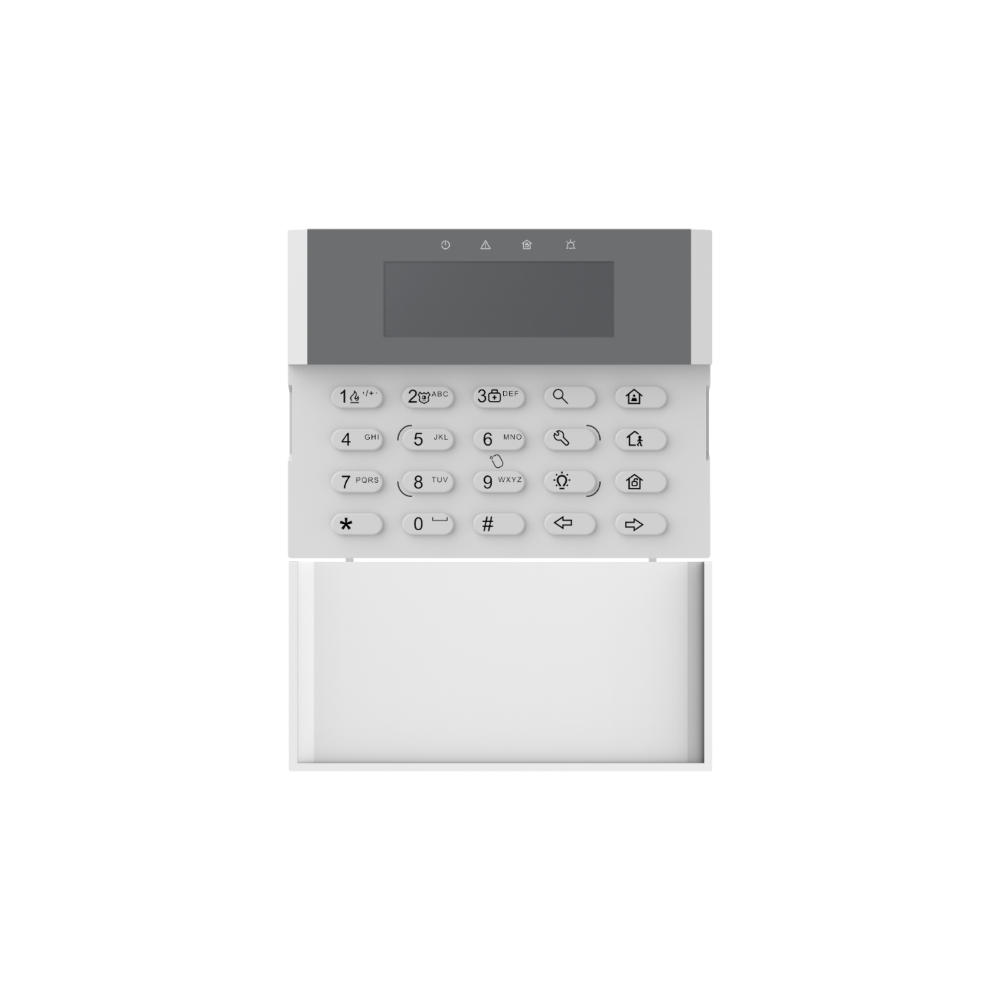

Hikvision DS-PK1-LRT-HWB Gen2 Wired LCD Keypad for AX Hybrid Pro Security Alarm System – Built-in MiFare Reader – Customizable Display – Works with DS-PHA64-LP
SKU: DS-PK1-LRT-HWB
Categories: Intrusion & Alarms, Wired Alarm Keypads & Touchscreens, Wired Alarms
Tags: Alarm, AX Hybrid Pro, Display, Hikvision, Keypad, Mifare, RFID
Hikvision DS-PK1-LRT-HWB Gen2 Wired LCD Keypad for AX Hybrid Pro Security Alarm System – Built-in MiFare Reader – Customizable Display – Works with DS-PHA64-LP
Key Features :-
- LCD screen display
- Supports one-touch arm (Arming without password）
- Supports Fire / Panic / Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs
Hardware features
- Tag reader built in: 1 Built-in Tag Reader
- Serial port: 1 TTL Serial Port
- Tamper-Proof: 1 Back-cover Tamper-switch Will be damaged when tamper triggered）
- Buzzer: 1 On-board Buzzer
- Function key: 8 Function keys Query, Away Arm, Stay Arm, Disarm, Alarm Output, Project, Left, Right
- RS-485: 1 Speed-X bus
- Alarm input: 2 On-board Alarm inputs
- Alarm output: 1 On-board Alarm output
Electrical characteristics
- Power supply: DC 12V
- Power consumption: 1. Quiescent consumption：0.972W @12VDC power supply with 81mA current; 2. Max consumption：1.33W @12VDC power supply with 111mA current
Wireless transmission
- RF frequency: 433MHz
Display
- Numeric key: 0 to 9，*，#
- Display screen: LCD Screen
- Indicator: 4 indicators and 1 backlight：
- 1. Power: Green
- 2. Faults: Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
- 3. Armed: Blue
- 4. Alarm: Red
- 5. Keypad button backlight: White
General
- Dimension (W x H x D): 150mm x 115mm x 28mm
- Color: White
- Operation temperature: – 10 °C to + 55 °C (14 °F to 131 °F)
- Operation humidity: 10%～90%
Device management
- Keyfob: 64
The Hikvision AX Hybrid Pro is an enterprise-grade security system that bridges the gap between traditional hardwired reliability and the flexibility of wireless devices. It is widely used for residential, commercial, and retail setups requiring heavy-duty perimeter protection and seamless video integration.
Top reasons to choose the AX Hybrid Pro include:
- Dual-Path Flexibility: Combines the tamper-proof stability of wired sensors (via a robust data bus) with the convenience of wireless peripheral additions.
- Visual Alarm Verification: Integrates directly with IP cameras and PIRCAMs to send instant snapshots or short video clips to your phone when an alarm triggers, eliminating false alarms.
- All-in-One Ecosystem: Allows you to control your alarm, video surveillance (NVR), and smart home automations from a single platform (the Hik-Connect app).
- Scalability: Easily expanded with relay expanders, wireless receivers, and power supply modules to cover large or complex properties without needing to rip and replace existing wiring.
- Environmental Versatility: Supports a wide range of detectors capable of spotting intrusions, broken glass, smoke, fire, and water/gas leaks.
